Brand: PED-LOCK
Measuring Range: 0-700BAR
Model Name/Number: MICRO PRESSURE GAUGE
Size: 1/2"
Accuracy: 0.2%
Body Material: SS
Dial Size: 2.5 inch / 63 mm
Pressure Range: 0 to 4000 psi
Connection: Bottom Connection
Use: Gas
Display Type: Analog
Pressure Type: Absolute Pressure
Dial Size: 4 inch / 100 mm
Brand: Baumer
Pressure Range: 0 to 250 bar(0 to 5000 psi)
Use: Process Industries
Display Type: Analog
Pressure Type: Gauge Pressure
Material: Stainless Steel
Application: Industrial
Dial Size: 2.5 inch / 63 mm
Brand: Baumer
Pressure Range: 0 to 25 bar(0 to 400 psi)
Use: Process Industries
Display Type: Analog
Pressure Type: Absolute Pressure
Dial Size: 2.5 inch / 63 mm
Brand: H Guru
Pressure Range: 0 to 2.5 bar(0 to 60 psi)
Use: Process Industries
Display Type: Analog
Pressure Type: Absolute Pressure
Brand: Excel
Measuring Range: 0-100, 0-200, 0-400, 0-700 & 0-1000kg/cm2
Material: Steel
Connection: Bottom Connection
Display Type: Analog
Dial Size: 4 inch / 100 mm
Display Type: Analog
Dial Type: Liquid Filled
Liquid Filling: Glycerine
Brand: ITEC
Measuring Range: 1600 bar
Accuracy: Grade 2A (+- 0.5%)
Dial Size: 4.5 inch
Ambient Temperature: -20 Deg C To 65 Deg C
Dampening liquid: Glycerin 99.7%
Brand: SMT
Measuring Range: 10kg/cm2
Usage/Application: Industrial
Material: Steel
Connection: New
Color: Silver
Brand: Micro
Pressure Range: 0 to 106 kg/cm2
Use: Process Industries
Display Type: Analog
Pressure Type: Absolute Pressure
Dial Type: Liquid Filled
Material: STAINLESS STEEL
Color: WHITE
Shape: ROUND
Brand: Wika
Measuring Range: UPTO 1000 BAR
Model Name/Number: 232.50
Brand: Hansa Flex
Pressure Range: 0 to 400 bar
Use: Industrial Use
Display Type: Analog
Pressure Type: Gauge Pressure
Connection Type: G
Brand: Scientific
Measuring Range: 0-30 PSI
Usage/Application: Industrial
Material: Steel
Connection: Bottom Connection
Display Type: Analog
Dial Size: 4 inch / 100 mm
Brand: Micro
Pressure Range: 0 to 250 bar(0 to 5000 psi)
Use: Process Industries
Display Type: Analog
Pressure Type: Gauge Pressure
Brand: ZOOM
Enclouser Class: IP 65
Accuracy: +/- 1% of FSD
Available Range: 1000 Kg/Cm2
Available Size: 100 mm, 150 mm, 200 mm & 250 mm
Dial Material: White Alluminium Dial
Measuring Range: 1 to 1500 Bar
Available Nominal Size: 40/50/63/100/150/200 & 250 mm
Case and Bezel: SS 304, Crimp / Snap Action Bayonet type
Scale Range: Vacuum, Compound & Pressure Upto 2500 Kg/cm
Application: Where Vibration & Pulsation
Material: Stainless Steel
Accuracy: Class 1.6(1.6%) for 63 mm, Class 1(1%) for 100
Filling Liquids: Glycerin, Silicone, Halocarbon, etc
IP Protection: IP65
Measuring principle: Bourdon tube
Nominal Dial Size: 63 mm
Dial Size: 2.5 inch / 63 mm
Brand: Avalon
Pressure Range: 10Kg per cm2
Use: Gas
Display Type: Analog
Connection Type: NPT
Dial Size: 2.5 inch / 63 mm
Brand: Kains
Use: Process Industries
Display Type: Analog
Pressure Type: Absolute Pressure
Dial Type: Liquid Filled
Dial Size: 2 inch / 50 mm
Brand: Nishka
Use: Industrial Use
Display Type: Analog
Pressure Type: Gauge Pressure
Connection Type: NPT
Dial Size: 2 inch / 50 mm
Brand: Adarsh
Use: Process Industries
Display Type: Analog
Pressure Type: Absolute Pressure
Connection Type: NPT
Dial Size: 2.5 inch / 63 mm
Pressure Range: 0 to 2.5 bar(0 to 60 psi)
Use: Process Industries
Display Type: Analog
Pressure Type: Absolute Pressure
Connection Type: NPT
Measuring Range: 140 Bar
Body Material: Steel
Display Type: Analog
Scale Range: Dual Scale - Bar/ Psi
Shape: Round
Usage/Application: Industrial
Dial Size: 2.5 inch / 63 mm
Pressure Range: 0 to 1000 kg/cm2
Use: Process Industries
Display Type: Analog
Pressure Type: Absolute Pressure
Dial Type: Liquid Filled
Dial Size: 2.5 inch / 63 mm
Brand: AARPEE
Use: Process Industries
Display Type: Analog
Pressure Type: Absolute Pressure
Dial Type: Liquid Filled
Measuring Range: 0-2000 psi
Size: 2"
Operational temperature: 30~70 deg C

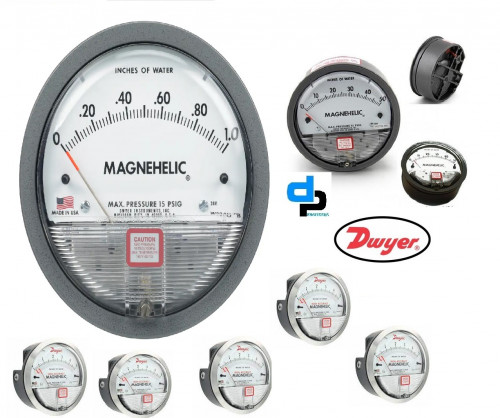

Black Magnehelic Differential Pressure Gauge
Product Details:
Diameter 4-3/4"
Weight 1 lb. 2 oz.
Deep 2-3/16"
Finished Baked dark gray enamel
Thread Size 1/8" NPT plugs
Pressure Rating 15 PSI
Having vast experience in the relevant industry, we are engaged in providing a broad assortment of Magnehelic Gauge that is assemble in order to meet specific demands of customers. Moreover, a series of quality tests is performed on offered gauge to ensure a defect free delivery at client's end. Clients can avail the offered range from us at market leading prices within stipulated time frame.
Features:
Accuracy
High functionality
Long service life
Specifications:
We provide magnehelic gauge of series which is low in cost, diaphragm operated and differential pressure gauge
Owing to these features these are used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%
Besides, these are also applied for monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, cabinet purging and many others
We offer magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas
In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover
These have exterior finish with grey color to withstand 168 hour salt spray corrosion test
Technical Specifications:
Accuracy: ±2% of full scale (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C)
Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option
HP option: 35 psig (2.41 bar), 80 psig (5.52 bar)
Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only
Temperature Limits: 20 to 140°F.* (-6.67 to 60°C)
Size: 4 (101.6 mm) Diameter dial face
Mounting Orientation: Diaphragm in vertical position, Consult factory for
Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back
Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g)
Other position orientations
Applications:
Filter Status
Duct Static Pressure
Clean Room Pressure
Building Pressure
Fan and Blower Pressure
Paint Booths
Dust Collectors
Glove Box Pressure
Bubbler Systems
Cabinet Purging
